HDMI / DP / DVI / 12G-SDI
10,400,000 pixels
3 Layers + 1 BKG
HDR10-Optima, Low Latency

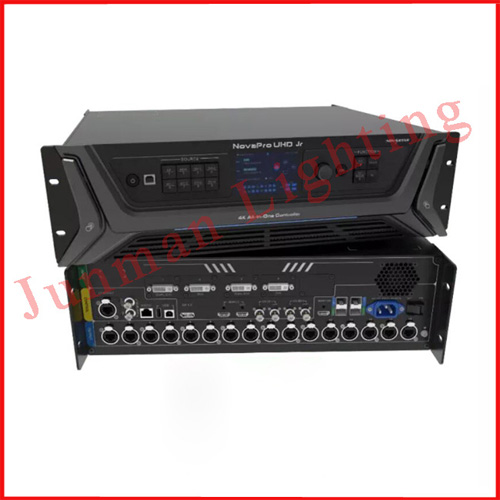

The NovaPro UHD Jr is a NovaStar’s new all-in-one controller that features excellentvideo processing capabilities, sending card functions and LED screen configurations.
The NovaPro UHD Jr provides a variety of video input connectors, supporting 4K×2K@60Hz image processing and sending capabilities.
With the help of smart control software V-Can from Novastar, the NovaPro UHD Jr can enable richer image mosaic effects and faster and easier operations.
The NovaPro UHD Jr can send the processed video to the LED screen via Neutrik Ethernet ports and optical fiber ports. Thanks to its powerful video processing capabilities and sending functions, the NovaPro UHD Jr is well suited for stage control systems, conference sites, activities, exhibition sites and other high-end rental applications as well as fine-pitch LED displays.
A variety of inputs and outputs
Provides 1 × DP 1.2, 4 × DVI, 1 × HDMI 2.0 with loop output and 2 × 12G-SDI with loop output.
More output connectors, larger loading capacity
Provides 16 × Neutrik Ethernet output and 4 × optical fiber output, with loading capacity up to 10,400,000 pixels.
The maximum width is 16K and maximum height is 8K.
DVI mosaic
An input source can be made up of at most 4 DVI input sources.
HDR output
Greatly enhances display image quality, providing more clear and vivid image.
Decimal frame rates
The supported frame rates are 23.98, 29.97 and 59.94.
Low-latency output
Reduces the latency from sending card to receiving card by 2 frames when the device is used together with NovaStar Armor series receiving cards
(A8/A8s/A9s/A10s Plus).
Customized BKG settings
Supports pure color and image BKGs.
Personalized image scaling
Supports 3 kinds of image scaling modes: full screen, pixel to pixel, custom.
Capture function
Captures input source image which can be used as a BKG image.
Image mosaic
Up to 4 NovaPro UHD Jr units can be connected to load a super-large screen when used with the video distributor.
V-Can (smart control software from NovaStar) supported
10 presets
At most 10 user presets can be created and saved as templates which can be used directly and conveniently.
EDID management supported
Supports custom EDID and standard EDID. |
